Description

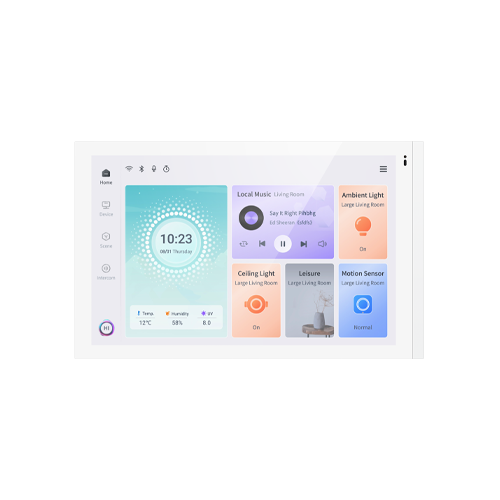

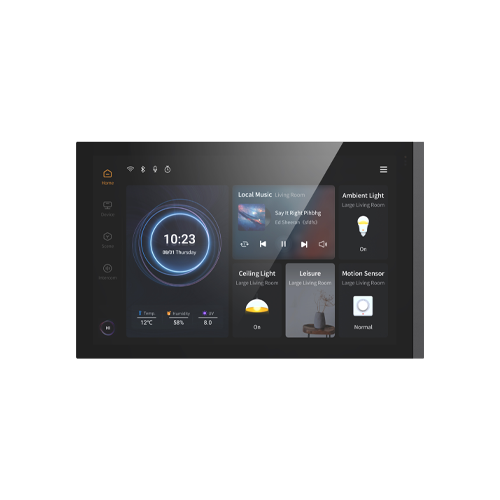

KNX Smart Touch S10 is a 10.1-inch KNX smart control panel with a screen resolution of up to 1280*800.In addition to integrating KNX device control, it also connects to a SIP intercom system, combining indoor and outdoor communication into one entity. The smart control integrates lighting, switches, dimming, curtains, value sender, color temperature, color control (RGB, RGBW, RGBCW),audio control,room temperature control, Air conditioner,Ventilation system control, etc. Supports display in air quality,energy metering,device status, also support various sensors such as proximity sensor,brightness sensor,temperature and humidity sensors, meets the requirements of most applications. Additionally, it supports schedule, logic function, scene group function to make your life smarter. As an intercom indoor unit, it supports wired network access and features such as address book import, contact management, SIP visual intercom calls, voice messages, security monitoring, virtual zone management, etc. It also supports various functions like SOS, lock screen, password access, etc. KNX Smart Touch S10 powered from KNX bus, and need a 12-30V DC auxiliary supply voltage or POE. It is available to assign the physical address and configure the parameters by engineering design tools ETS with .knxprod ( support editionETS5.7 or higher ).
